Case Study: MISP – Malware Information Sharing Platform

Introduction

In this case study, I explored MISP (Malware Information Sharing Platform) — an open-source platform designed for collecting, storing, and sharing cyber threat intelligence (CTI) and Indicators of Compromise (IOCs).
The purpose of this exercise was to understand how security analysts collaborate through structured threat data sharing, correlate events, and detect potential cyber threats across organizations.

MISP is widely used by SOC teams, CERTs, and threat intelligence analysts because it bridges the gap between malware analysis, incident response, and intelligence distribution.
Throughout this lab, I worked through real-world scenarios to create, manage, and analyze MISP events while learning about taxonomies, feeds, and correlation workflows.

Understanding MISP: Features & Core Concepts

Before diving into the hands-on tasks, I reviewed how MISP structures and organizes information.

I learned that MISP’s data revolves around Events — containers that hold all related indicators and context for a specific incident or threat campaign. Each event contains Attributes (such as IP addresses, hashes, domains, and emails) and may also use Objects and Object References to structure the data relationships.

I found it particularly interesting that MISP supports Sightings, which are detections of IOCs in the wild — giving a level of credibility to shared indicators.
Other core features include:

The most useful concept I learned was taxonomy and tagging, which allow classification of data with standardized labels such as TLP (Traffic Light Protocol) or confidence level. These play a key role in structured intelligence sharing.

Getting Hands-On with MISP

Once I understood the theoretical background, I launched the attached virtual machine and logged into MISP using the provided Analyst credentials.
After a short wait for initialization, I accessed the platform via the browser.

Exploring the Dashboard

I began by navigating through the Dashboard, where I discovered that the interface is divided into logical areas:

This first interaction gave me a clear understanding of MISP’s workflow — it’s very structured but flexible for collaboration.

Event Management Workflow

To understand how threat data flows inside MISP, I explored the process of event creation, population, and publishing.

Feeds, Taxonomies & Tagging

After understanding events, I focused on Feeds and Taxonomies — two of MISP’s most powerful classification tools.

Feeds

Feeds are external data sources that provide updated threat intelligence.
I learned how analysts can preview events, import relevant indicators, and correlate attributes automatically.
In MISP, feed management is typically handled by the site administrator.

Taxonomies

Taxonomies are structured systems for labeling and classifying data.
For example, using the TLP (Traffic Light Protocol) taxonomy, I can tag events as TLP:RED, TLP:AMBER, etc., depending on how confidential they are.
They also support confidence levels, source types, and threat categories.

Tagging

Tags are simpler identifiers that can be applied at the event level or attribute level.
I learned that it’s best practice to use tags primarily at the event level and limit the number of tags to key elements like:

This tagging system ensures that intelligence shared across organizations remains organized, contextual, and trustworthy.

Scenario: Investigating a PupyRAT Event

Once I was comfortable with navigation and data classification, I moved on to a practical investigation involving a real-world scenario.

The challenge involved a PupyRAT infection (a Remote Access Trojan known for stealthy command-and-control activity).

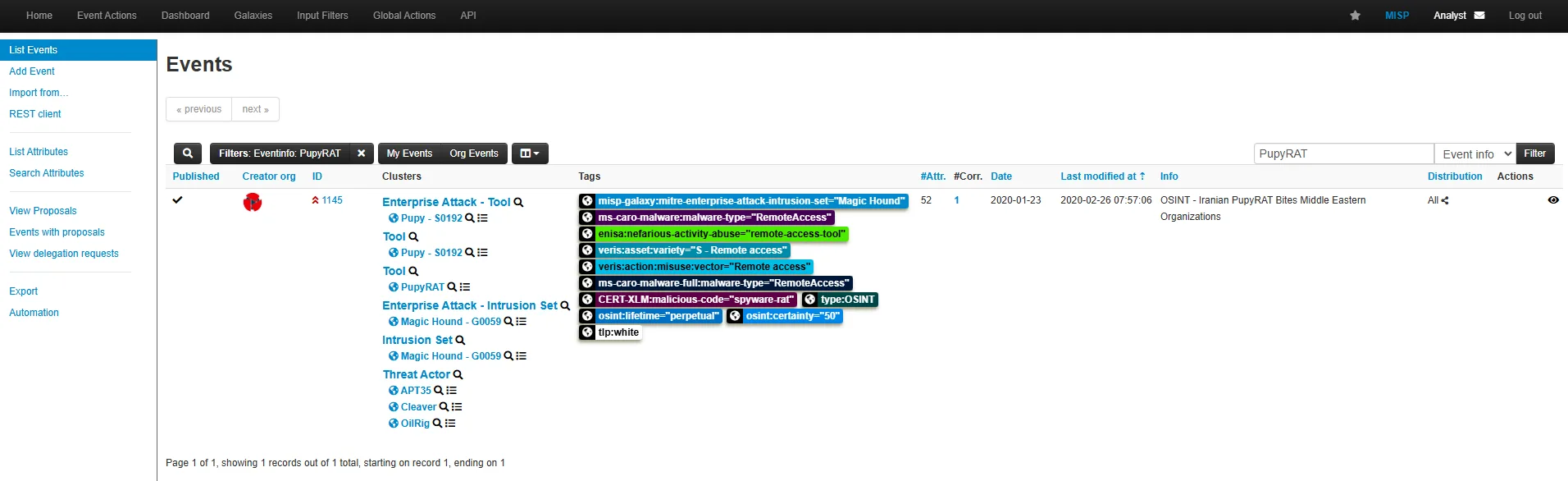

  1. I started by searching for “PupyRAT” in the global search bar.
    MISP quickly retrieved an existing event titled “PupyRAT event.”
    I identified its Event ID as 1145.

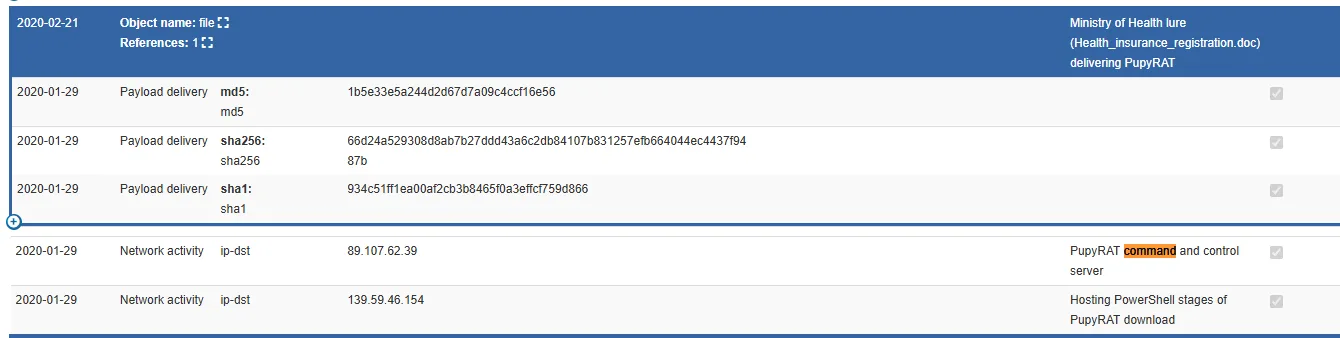

  2. Opening the event, I explored its attributes — the list contained various network and file indicators.
    Among them, I found the C2 (Command and Control) Server IP listed as 89.107.62.39.

  3. Looking at the event’s tags, I noticed several that referenced RemoteAccess, indicating the type of access the adversary aimed to gain.
    Thus, I concluded the event was associated with Remote Access into organizations.

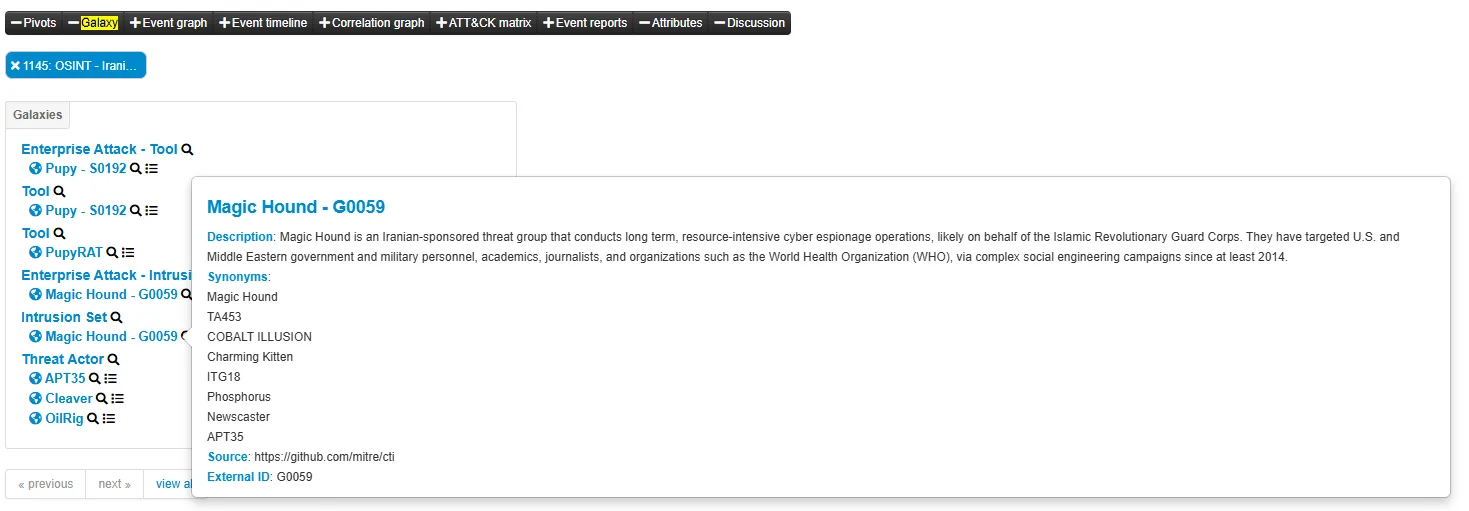

  4. Under the Galaxy view, I checked the related Intrusion Set and discovered that the campaign was linked to the Magic Hound group — a known threat actor.

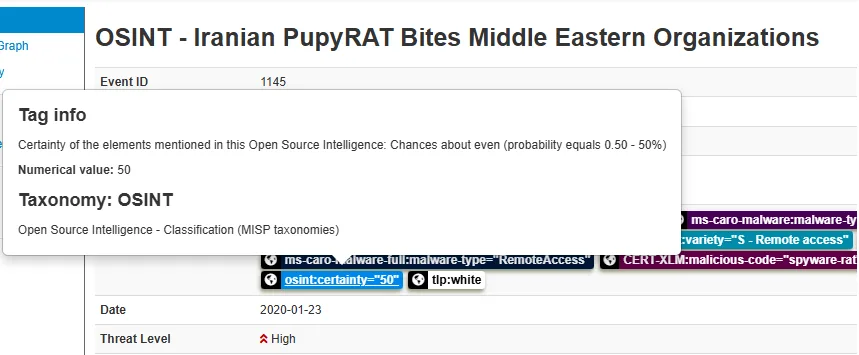

  5. Finally, under the taxonomy section, I spotted a tag named osint:certainty=”50”, meaning this information had a 50% confidence level based on open-source intelligence. This exercise demonstrated how MISP allows analysts to connect threat attributes to adversary groups and better understand attack patterns.

What I Learned

Through this lab, I gained a deep appreciation for how structured threat intelligence is shared and managed in real environments.
Here are my main takeaways:

Conclusion

This room provided an excellent hands-on introduction to MISP and its critical role in Cyber Threat Intelligence (CTI) operations.
By the end of the session, I was comfortable navigating the platform, creating and managing events, applying taxonomy-based tagging, and analyzing real-world threats like PupyRAT.

Overall, I learned how MISP acts as the bridge between incident detection and intelligence sharing — a vital skill for any SOC Analyst or Threat Researcher.
