Case Study: OpenCTI

Introduction

After completing several rooms about threat intelligence and SOC workflows, I explored OpenCTI, an open-source platform designed to centralize, correlate, and analyze CTI (Cyber Threat Intelligence).

This room helped me learn how to navigate and analyze real-world data in OpenCTI — especially focusing on mapping malware, campaigns, and APT groups to techniques and indicators using frameworks like MITRE ATT&CK.

---

Task 1: Room Overview

I learned that OpenCTI allows organizations to store, analyze, and visualize threat intelligence.

No answer was needed here, but it gave me a foundation for what I’d be working with.

---

Task 2: Introduction to OpenCTI

OpenCTI was developed by the French National Cybersecurity Agency (ANSSI). I learned that it:

• Integrates multiple tools to connect technical and non-technical data.
• Follows the MITRE ATT&CK framework for structuring data.
• Connects with MISP (threat feeds) and TheHive (case management).
• Helps analysts visualize and connect intelligence from campaigns to observables.

No answer was needed for this section.

---

Task 3: Understanding the OpenCTI Data Model

OpenCTI uses the STIX2 standard to structure entities and relationships, making it easier to trace intelligence.

Key architecture components I explored:

• GraphQL API: Main access point for queries.
• Write Workers: Handle asynchronous data writes.
• Connectors: Import, enrich, and export data from external systems like CVE, MISP, and TheHive.

I learned how modular the system is and how it supports integration with external sources for enriched threat intelligence.

No answer was needed here.

---

Task 4: OpenCTI Dashboard Exploration

I launched the OpenCTI instance using the provided credentials:

Username: info@tryhack.io
Password: TryHackMe1234

The dashboard displays:

• Number of entities, relationships, reports, and observables.
• 24-hour changes in activity.

I explored the main sections:

• Activities: Incidents and reports for triage.
• Knowledge: Maps adversaries, tools, campaigns.
• Analysis: Lists reports and connects related entities.
• Observations: Houses IOCs and technical data.
• Threats: Shows threat actors, intrusion sets, and campaigns.
• Arsenal: Malware, tools, vulnerabilities, and attack patterns.
• Entities: Organizations, people, and sectors under attack.

My Investigations

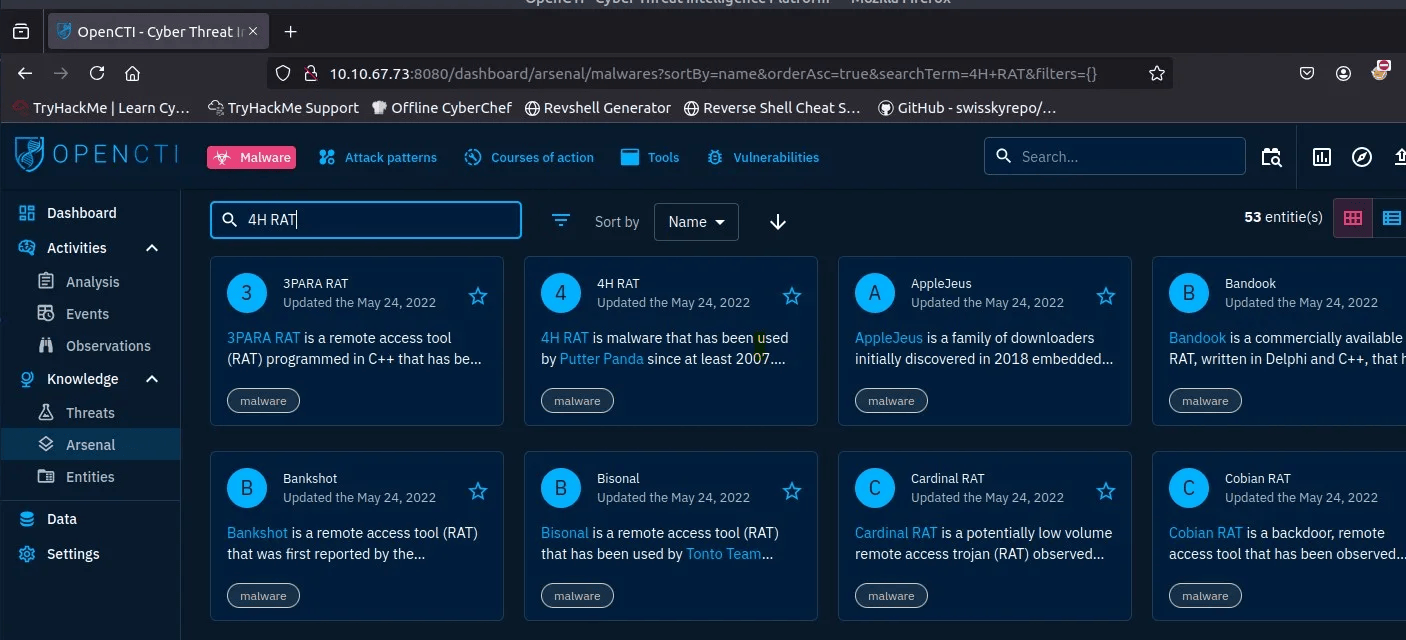

Q1: Group using 4H RAT malware

• Knowledge → Arsenal → Malware → Search “4H RAT”
• Answer: Putter Panda

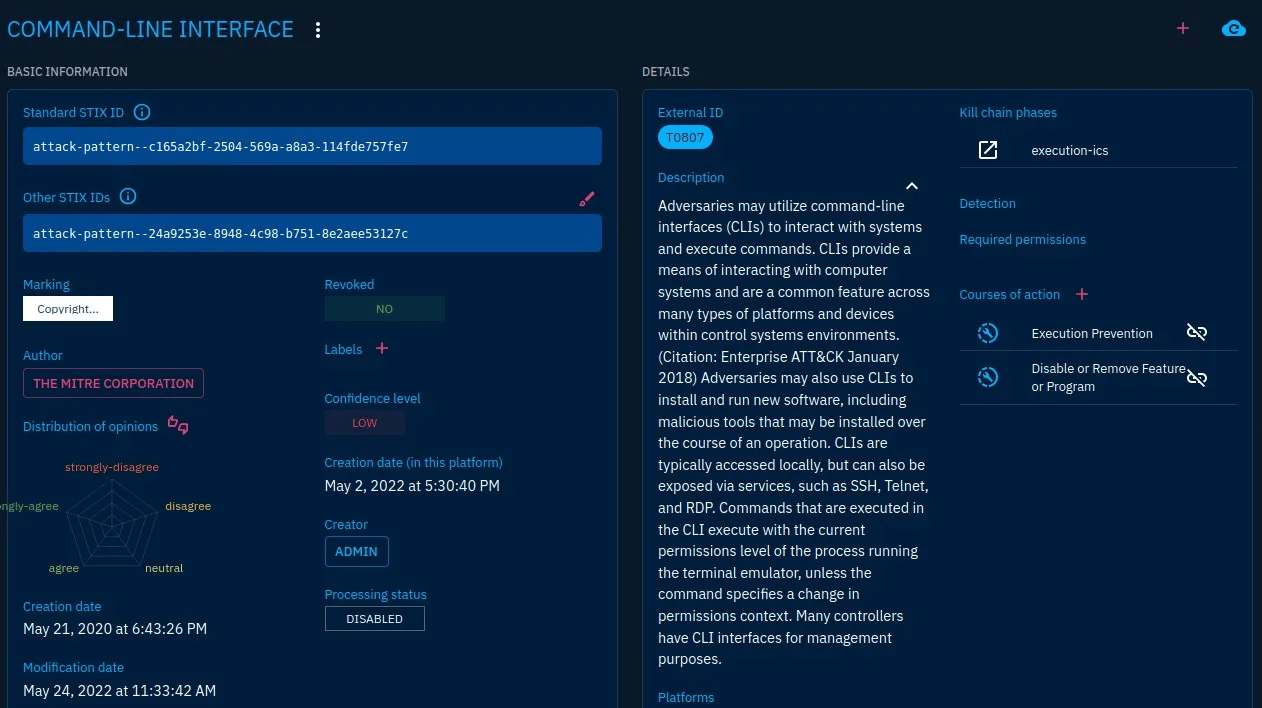

Q2: Kill-chain phase linked with Command-Line Interface Attack Pattern

• Arsenal → Attack Patterns → Search “Command-Line Interface”
• Answer: execution-ics

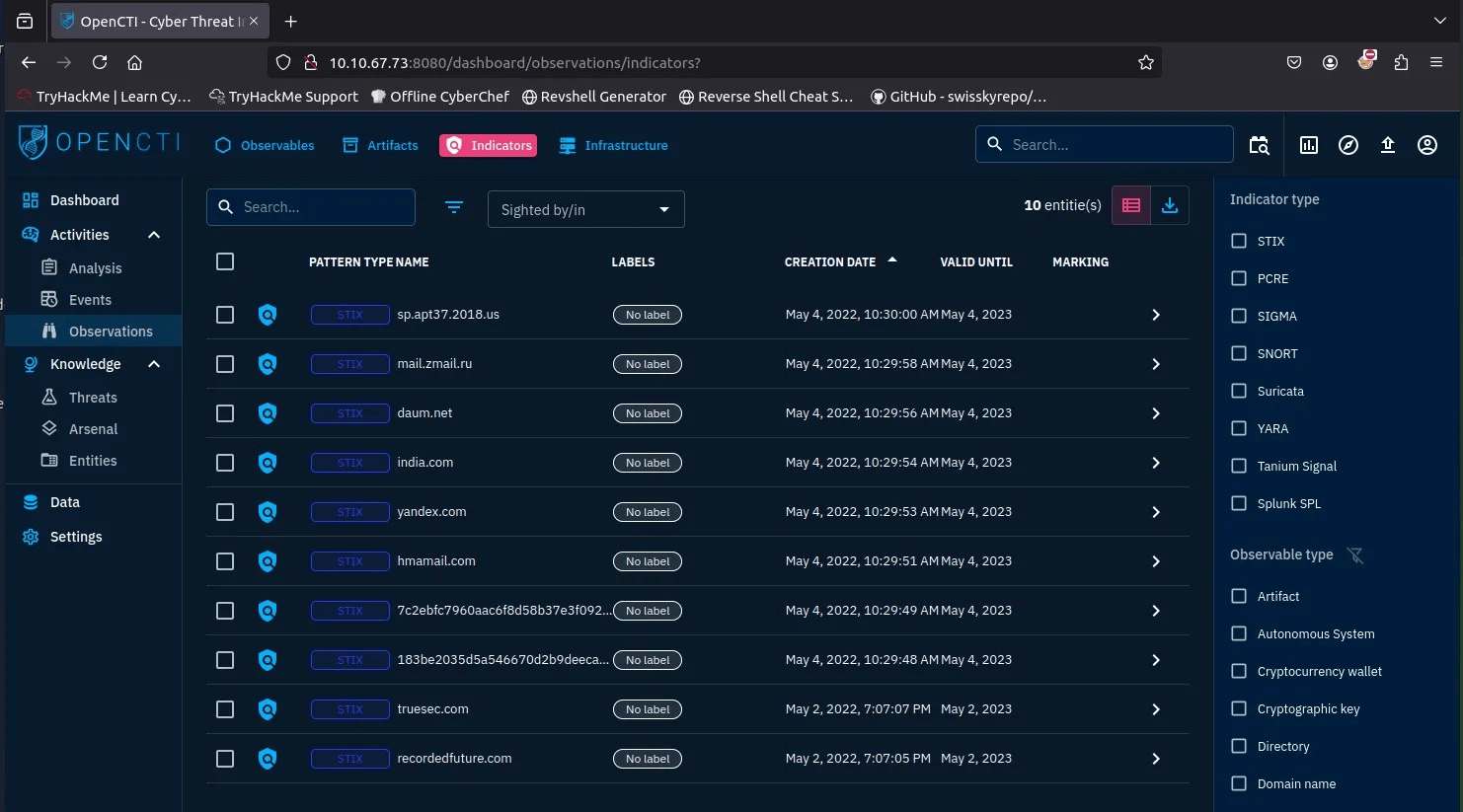

Q3: Tab housing Indicators

• Activities → Observations → Indicators
• Answer: Observations —

Task 5: Navigating General Tabs

Each entity page has six main tabs:

1. Overview: Basic info, reports, and confidence level.
2. Knowledge: Relationships to indicators, campaigns, threats.
3. Analysis: Lists reports mentioning the entity.
4. Indicators: Displays IOCs.
5. Data: Stores supporting files.
6. History: Tracks modifications.

Findings

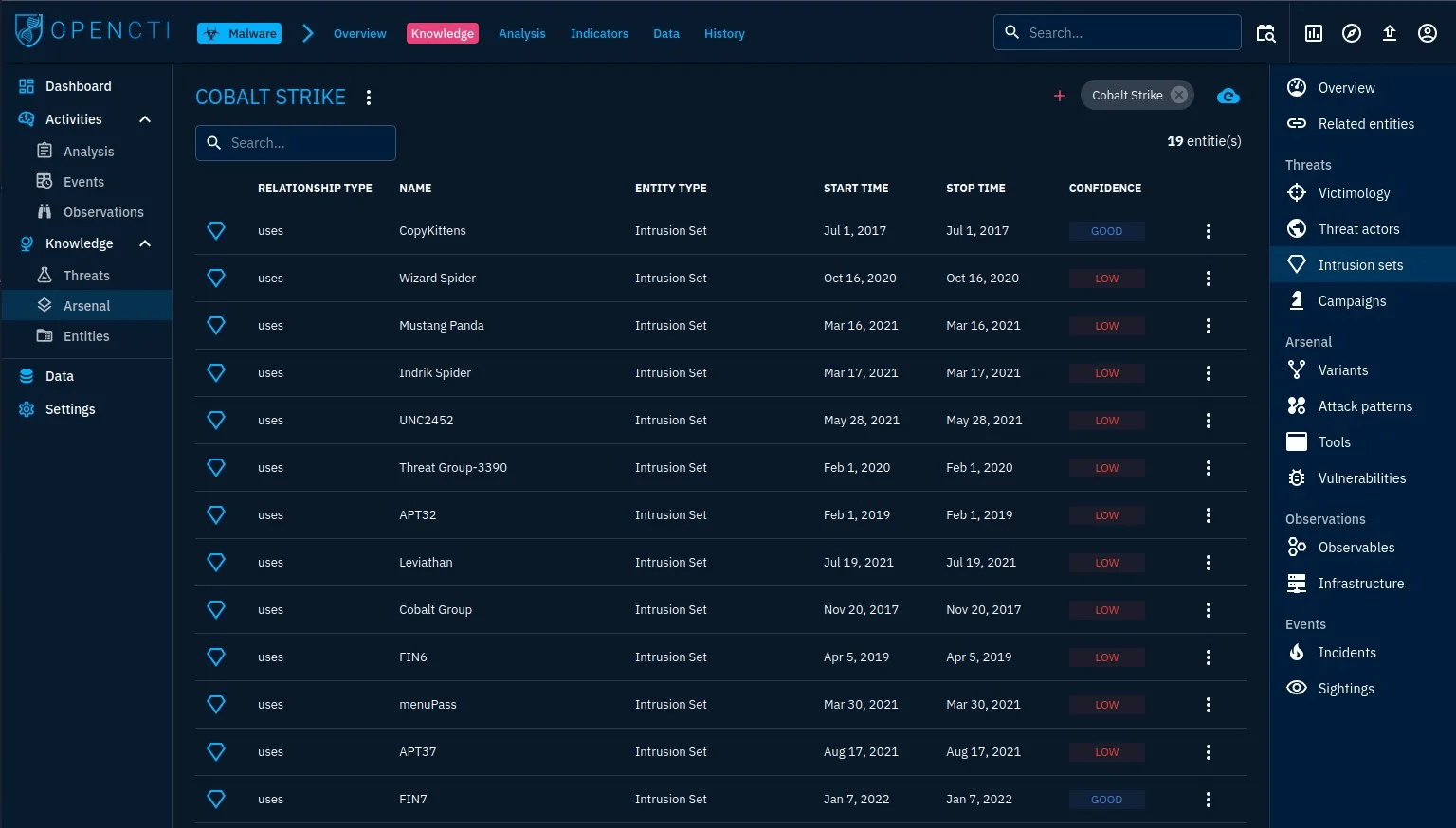

Q1: Intrusion sets associated with Cobalt Strike malware with Good confidence level

• Knowledge → Arsenal → Search “Cobalt Strike” → Knowledge → Intrusion Sets
• Answer: CopyKittens, FIN7

Q2: Author of the entity

• Overview tab shows The MITRE Corporation
• Answer: The MITRE Corporation

---

Task 6: Investigative Scenario

Investigating CaddyWiper malware and APT37 threat group.

CaddyWiper

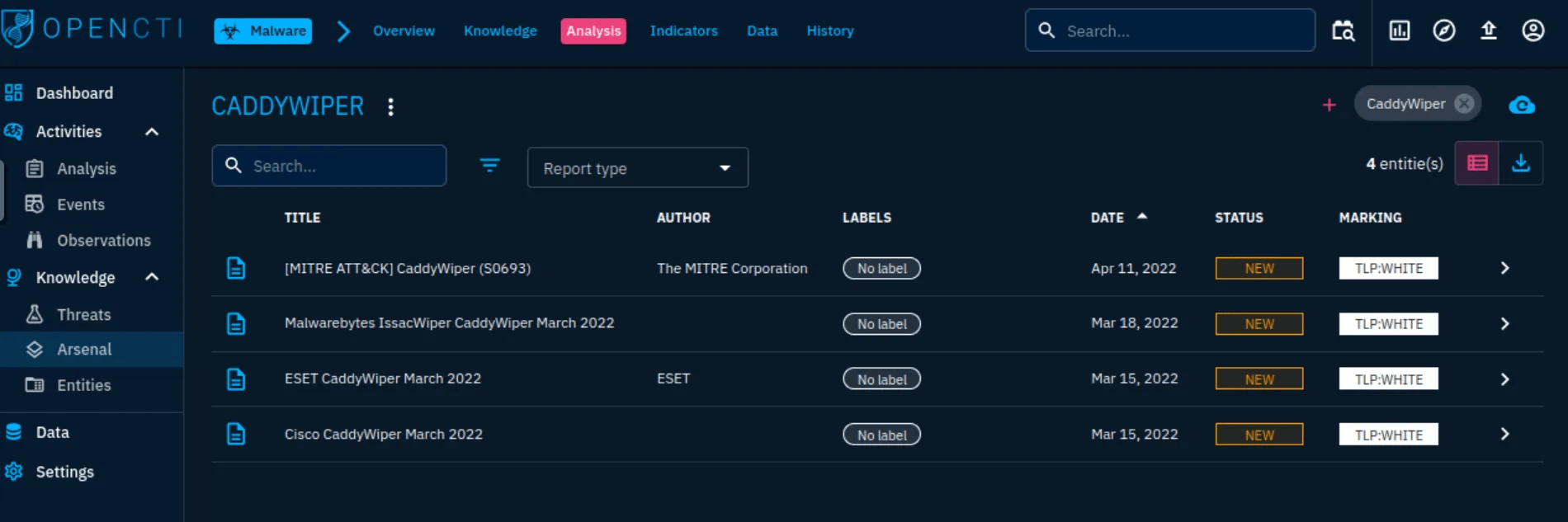

Q1: Earliest date recorded

• Knowledge → Arsenal → Search “CaddyWiper” → Analysis
• Answer: 2022/03/15

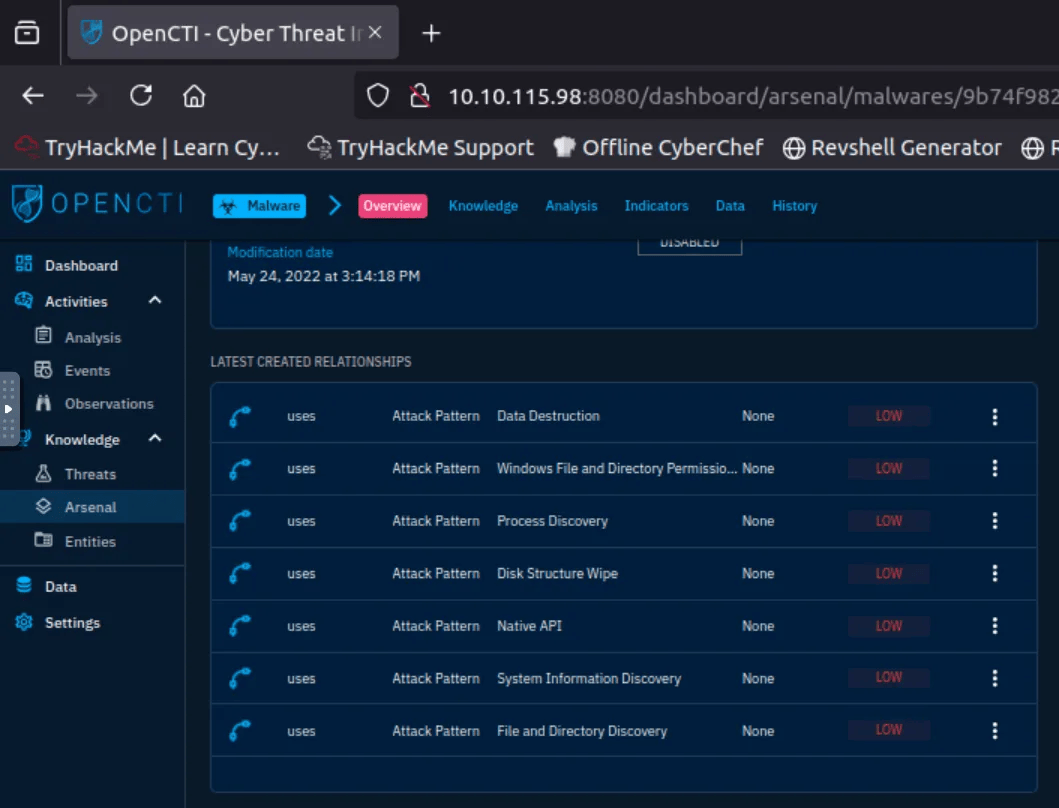

Q2: Attack technique for execution

• Overview → Attack Patterns
• Answer: Native API

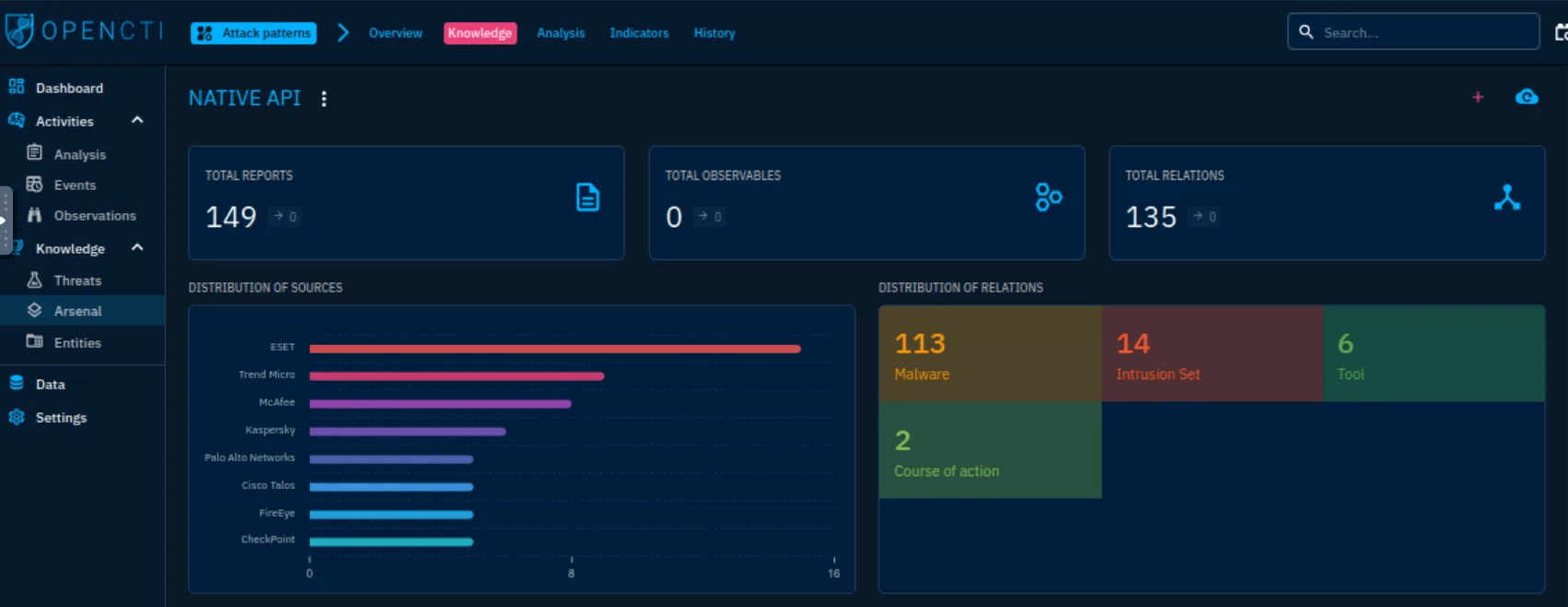

Q3: Number of malware relations linked to this attack technique

• Native API → Knowledge → Malware relations
• Answer: 113

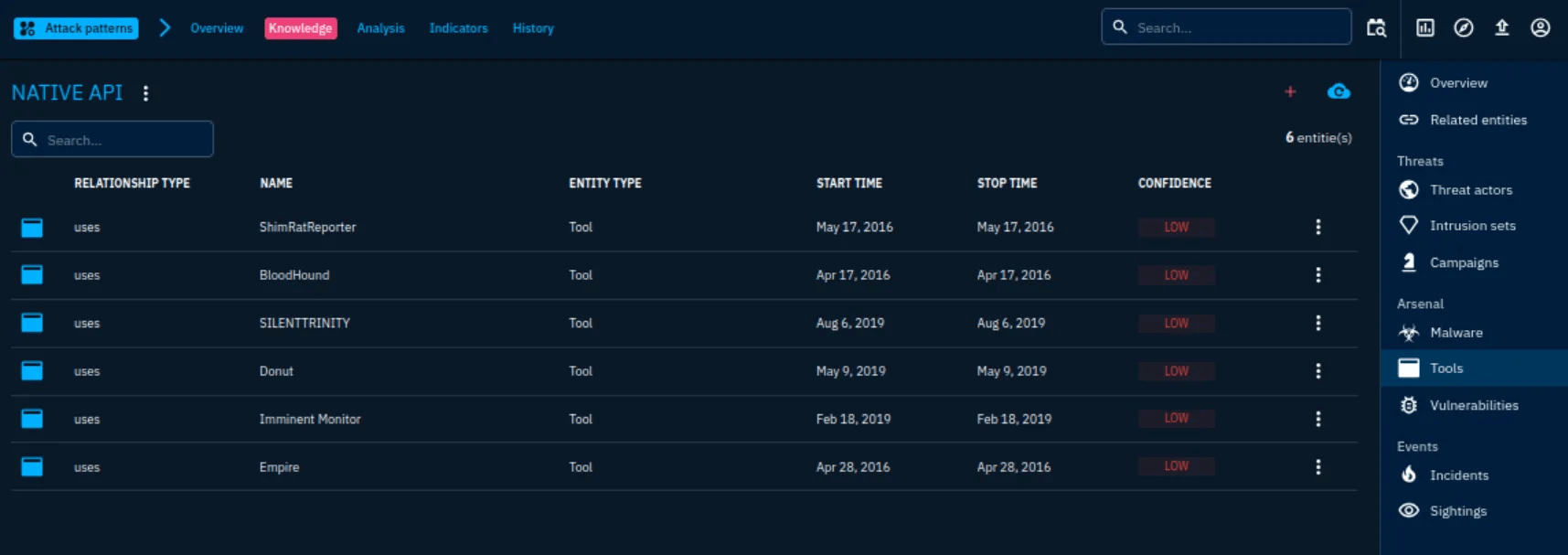

Q4: Tools used by the Attack Technique in 2016

• Native API → Tools → Filter by 2016
• Answer: BloodHound, Empire, ShimRatReporter

APT37

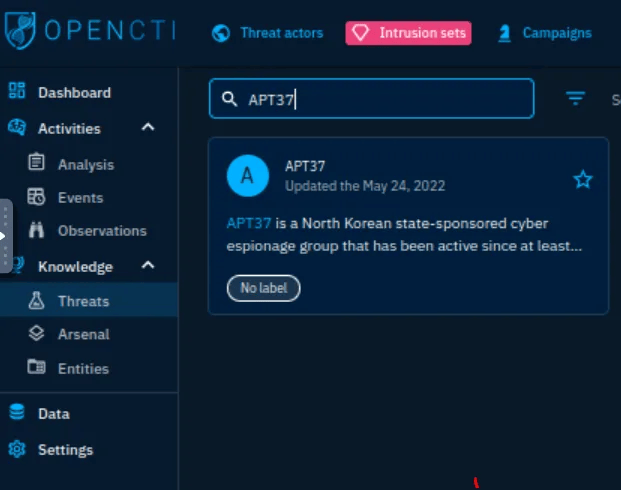

Q5: Country associated with APT37

• Threats → Intrusion Sets → Search “APT37”
• Answer: North Korea

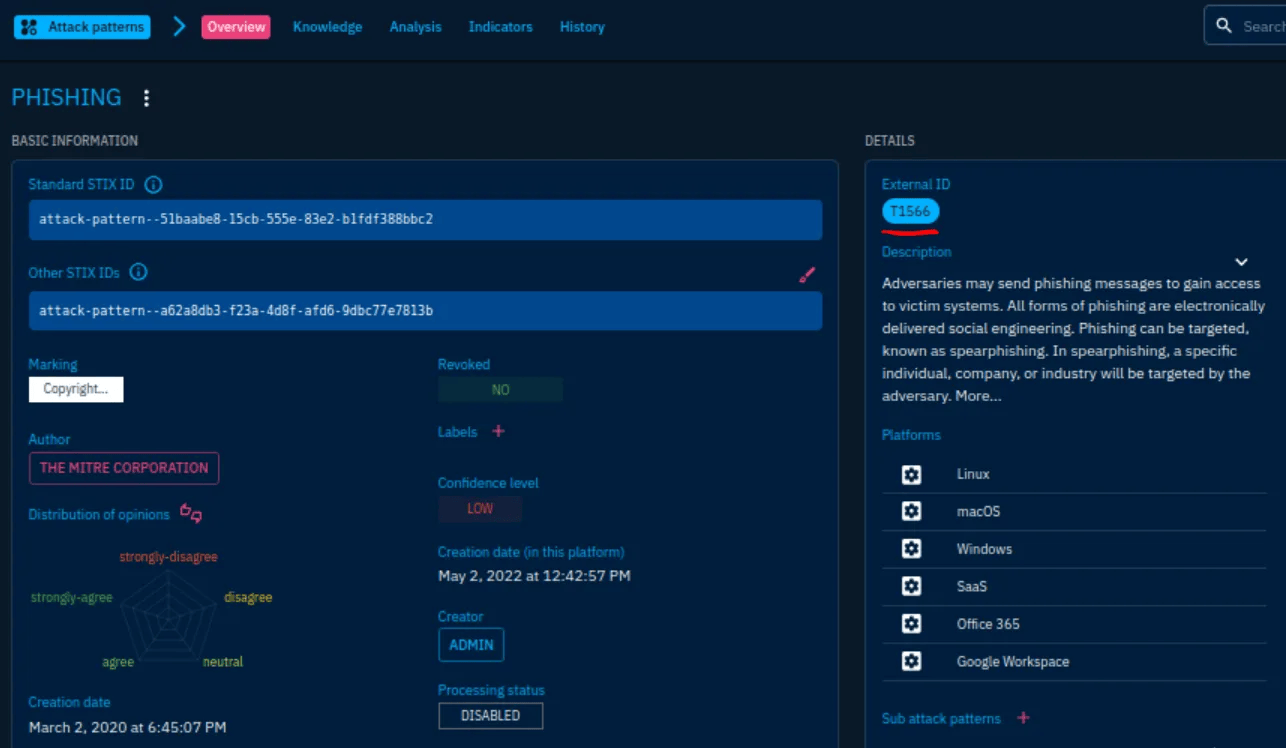

Q6: Attack techniques for initial access

• APT37 → Attack Patterns → Initial Access
• Answer: T1189, T1566

---

Task 7: Conclusion

By completing this room, I learned how to:

• Explore and connect entities, campaigns, malware, and indicators.
• Interpret relationships and kill-chain phases using MITRE ATT&CK.
• Use Arsenal, Knowledge, and Threats sections for research.
• Perform investigations linking malware and APTs through shared TTPs.

OpenCTI is a powerful tool for SOC analysts, integrating structured threat intelligence with actionable insights for real-world investigations.

---
